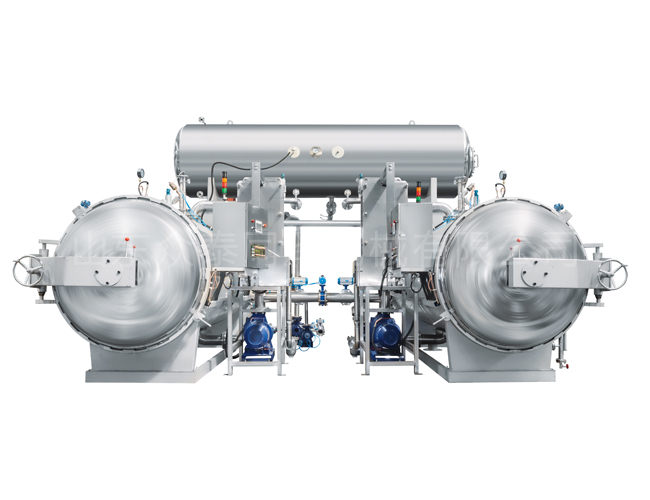

Name：Two parallel pot sterilization pot
Details
Characteristics of the equipment：
1) reduce steam consumption, steam, water in autoclave sterilization after atomization directly in hot mix, increase temperature and cooling speed.
2) direct indirect heating cooling, cooling water and process water contact, avoid the secondary pollution of the food, not used for water treatment chemicals. High temperature short time sterilization.
3) a small amount of process water cycle fast, fast to the expected temperature sterilization.
4) water injection from different angles, steam, air and water mixed convection, the formation of the temperature distribution.
5) low noise, create quiet and comfortable working environment.
6) kettle temperature sensing probe is equipped with four mobile, may at any time to monitor food center F value, the heat distribution inside the kettle, about heat penetration (from food surface temperature time of arrival in food geometric center).
7) pressure control, pressure in the entire production process adjustment, to adapt to the product packaging the change of the internal pressure, make the product packaging to achieve low deformation degree, especially suitable for gas packaging products.
8) process water preheating system (optional) ensures that temperature, hot filling of products get continuous heating process.
9) sterilization of water by demineralization water (optional) packaging process water quality problems can be avoided with dirt.
10) steam sterilization function (optional)
A fully functional autoclave is applicable to all kinds of high temperature resistant packaging materials：
1, the plastic container: PP bottles, HDPE bottles.
2, soft bag packing: packed in foil bags, transparent bags, vacuum bag, high temperature cooking bags, etc.
3, tin cans, steel and glass products.
Technical parameters：
|
project |
unit |
1000# |
1200# |
1300# |
1500# |
||||||
|
The length |
mm |
2400 |
2400 |
3200 |
3600 |
4000 |
3600 |
4500 |
4200 |
5250 |
6300 |
|
Chief, |
mm |
3900 |
4400 |
4200 |
4600 |
6000 |
4800 |
6700 |
6450 |
7500 |
8400 |
|
The total width |
mm |
1500 |
1600 |
1600 |
1600 |
1600 |
1800 |
1800 |
2350 |
2350 |
2350 |
|
High total |
mm |
1700 |
1900 |
1900 |
1900 |
1900 |
2100 |
2100 |
2400 |
2400 |
2400 |
|
capacity |
m³ |
2.2 |
3.2 |
4 |
4.6 |
4.9 |
5.3 |
6.5 |
8.1 |
10 |
11.8 |
|
Food basket |
个 |
3 |
3 |
4 |
4 |
5 |
4 |
5 |
4 |
5 |
6 |
|
Gas consumption |
Kg/batach |
95 |
130 |
185 |
210 |
230 |
250 |
310 |
385 |
480 |
570 |
|
Equipment power |
KW |
6.5 |
12 |
12 |
12 |
12 |
12 |
12 |
16 |
16 |
16 |
|
Power consumption |
KW/h |
5.5 |
9 |
9 |
9 |
9 |
9 |
9 |
11.5 |
11.5 |
11.5 |
|
Design temperature |
145° |
||||||||||
|
Test pressure |
0.44Mpa |
||||||||||
|
Design pressure |
0.35Mpa |
||||||||||
