Equipment is introduced:

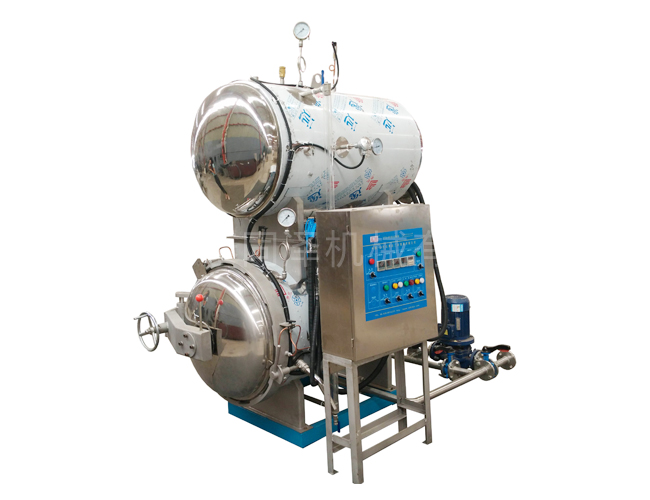

1. This machine is a new product development for laboratory type food producers, develop new products sterilization formula, simulate the sterilization conditions in the actual production.

2. The sterilization kettle on the basis of the traditional spray type sterilization is equipped with electric heating system, provide heat for sterilization process. From the purchase of the boiler, let users from anxiety.

3. The machine with multiple functions of sterilization, for a variety of different sterilization.

Equipment characteristics:

This equipment is designed for school teaching, food, scientific research and new product development and design of new products. Covers an area of small, easy to operate. Can design according to the needs of the user manual, semiautomatic and fully automatic type. To meet the testing requirements of steam sterilization and water sterilization. This product is suitable for all types of products sterilization process, and new product development is the ideal teaching experiment of sterilization equipment.

Automatic sterilization kettle is suitable for all kinds of high temperature resistant packaging material:

Container: 1. The glass jar

2. Metal containers: tinplate cans

3. The aluminium cans, plastic containers: PP bottles, HDPE bottles

4. The soft bag packing: aluminum foil bags, transparent bags, vacuum bag, high temperature cooking bags, etc.

The main parameters:

Project	unit	specifications
The sterilization pot diameter	mm	∅500/L900	∅700/L1000	∅900/L1200
Number of basket cage	个	1	1	1
High pressure of work	MPA	0.35	0.35	0.35
High working temperature	℃	147	147	147
Steam pressure	MPA	0.6	0.6	0.6
The steam consumption of	KG/BATCH	150	170	220
Installation dimensions	mm	1500*900*1500	1600*1100*1500	1800*1300*1700
